Heavy Duty T-Top Console Mount

The framework features a large radius which gives greater structural strength and crossbars are positioned high on the uprights to allow clearance for side doors or fittings on console.

Atlas Marine Fabrics blue 9.14oz b

  • Ø1 3/4″ Bright Dipped Anodized Aluminum tube
  • High quality  9.14oz/yd² Atlas Marine Canvas.
  • All components manufactured with (Basf) Capron HMGB Nylon Blend superior structural strength and compatibility with the marine environment
  • 316 Grade Stainless Steel fasteners

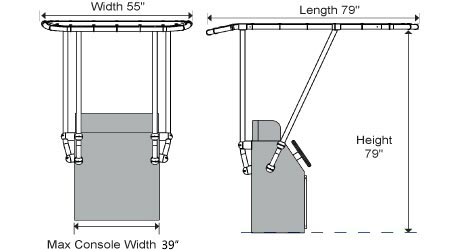

Heavy Duty T-Top Console Mount Dimensions Diagram

Product AddOns

'Clamp on' Rod Holder

Mount for Navigation Light Ø1 3/4"

From: $422.99
  • SKU: MA 080-5-BUNDLE


Heavy Duty T-Top Console Mount White Powdered Blue



Heavy Duty T-Top Console Mount Dimensions Diagram



Altas Fabric Blue
Weight 9.14oz/yd²
Material 100% High Tech Polyester
Water Column ≥ 150 mbar (1500 mm)
Light & Weather Fastness Note 6-7
Tensile Strength ≈ 2200 N¹ | 1400 N²
Elongation ≈ 40 %¹ | 30 %²
Colour Fastness to rubbing Note 4-5³ | Note 44
Chlorine Resistant Note 4-5
Water Repellency Note 100
Oil Repellency Note 4
Coating Polyurethan [PU]
UV Protection Factor UPF 50+ (measured > UPF 80)
